Scanstrut | Horizontal Double Cable Seal | 5-6mm

The best compact horizontal double-entry cable seal. The DS-HD6-BLK double horizontal cable seal was designed to eliminate time-consuming and sub-standard routing of solar panel cables. Our seal helps you achieve a sleek, easy-to-fit, and 100% watertight installation every time. Perfect for routing two solar panel cables externally to internally on the roof of boats.

Features

• Designed for solar panel installations

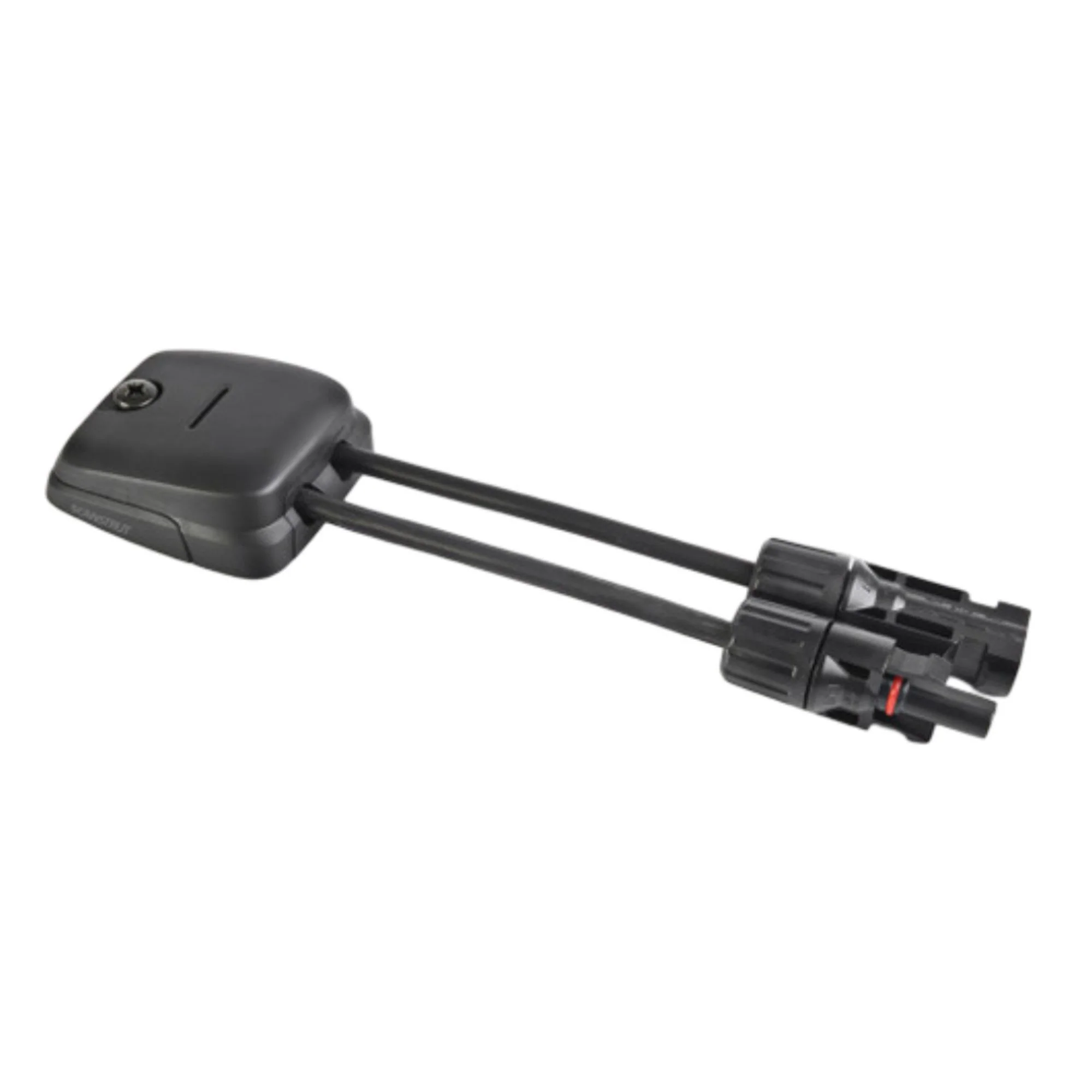

• Install 2 cables - 5mm (0.19”) and 6mm (0.23”) in any combination
• Compact footprint - just 54mm (W) 63mm (L) 24mm (h)
• Makes it perfect for installing as close to the solar panel as possible
• Easy fit cable routing that cuts down your installation time through wood, metal, and GRP
• IP68 watertight seal
• Black high-impact plastic

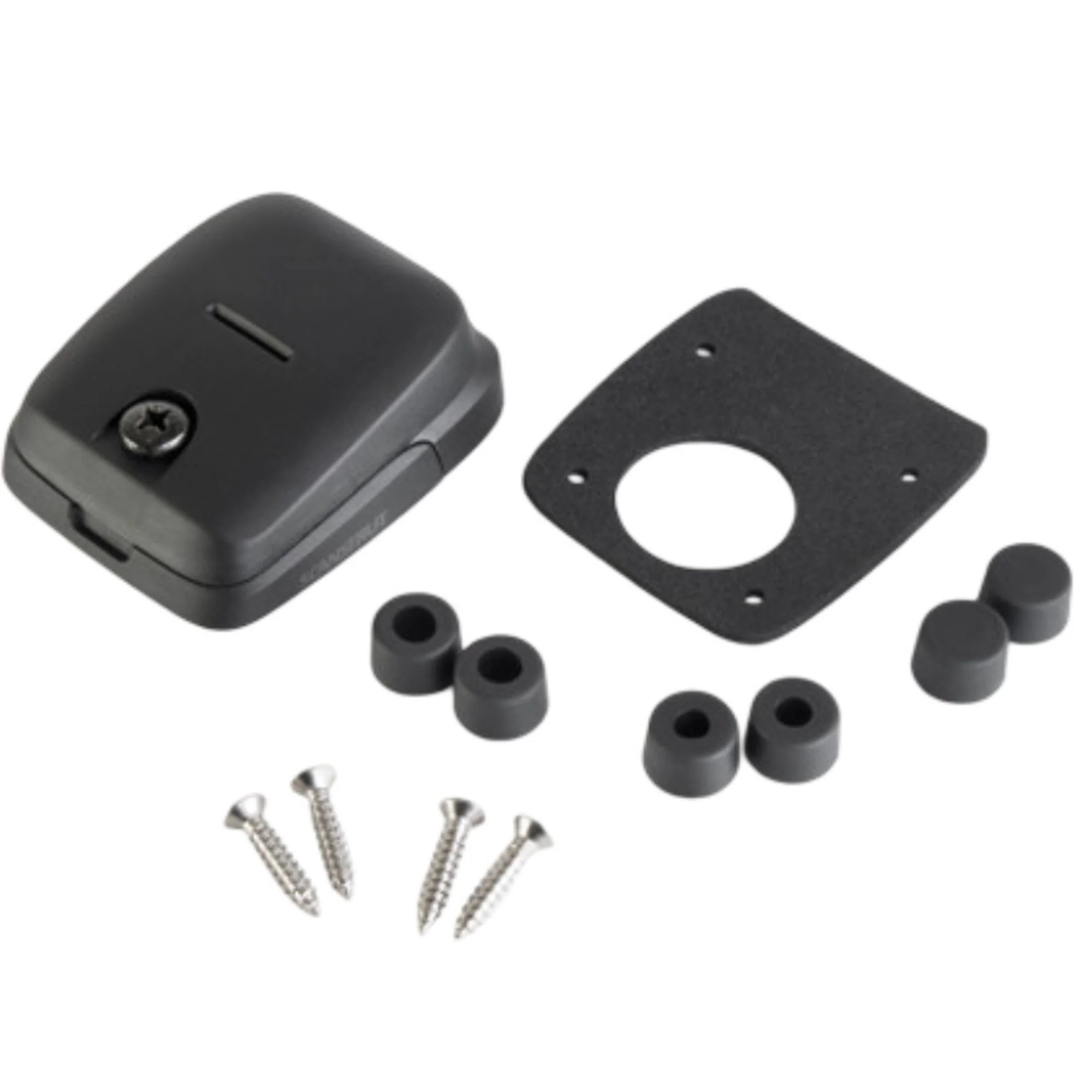

• Includes 316 stainless steel fixings and a waterproof 3M gasket
• Clean and simple design
• The low-profile construction is impact-resistant and provides extra protection from water
• Captive nuts make for easy assembly and also allow for reliable repeat installations
• Our materials have been selected to be UV-stable and hard-wearing
• No messy sealant on bungs
• Constructed from premium marine-grade materials

Specifications

• Material: High Impact Plastic
• Height: 22mm (0.86")
• Length: 63mm (2.51")
• Colour: Black
• Cable Diameter: 2 x 5-6mm (0.19-0.24")
• Bungs: 2 x 5mm (0.2") / 2 x 6mm (0.24")
